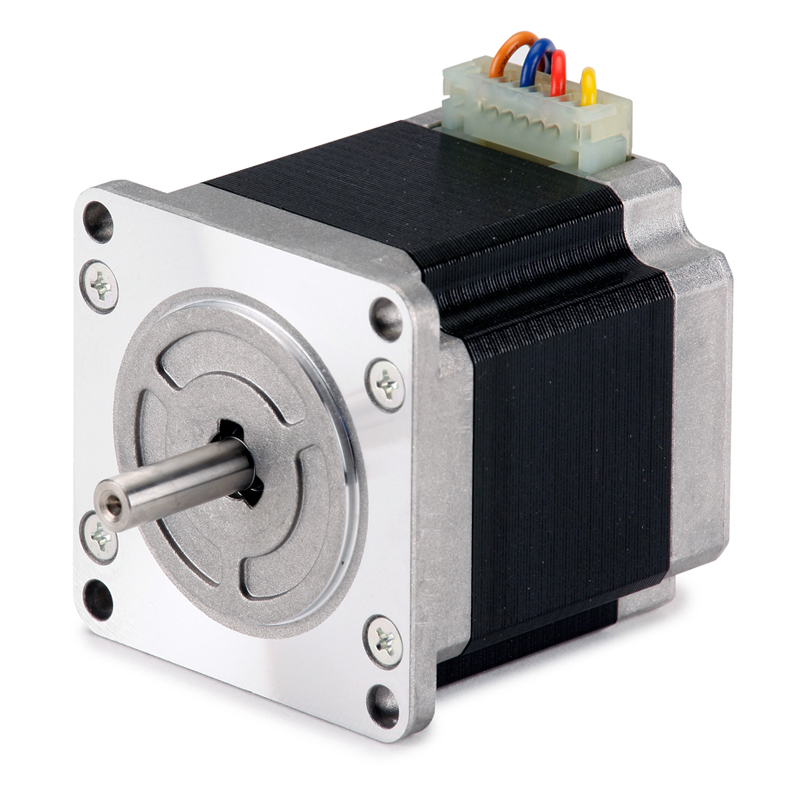

DOUBLE SHAFT STEPPING MOTOR 103-H7123-0710
Flange size 56 mm. Nema 23

Introduction

103-H7123-0710 double shaft motor is characterized by flange size 56 mm. ( NEMA 23 ) with holding torque up to 110 Ncm.
Suggested R.T.A. driver: BSD series, A-CSD series, CSD series, A-NDC series, NDC series, ADW series, HGD series.

SUGGESTED MOTOR/DRIVE COUPLING

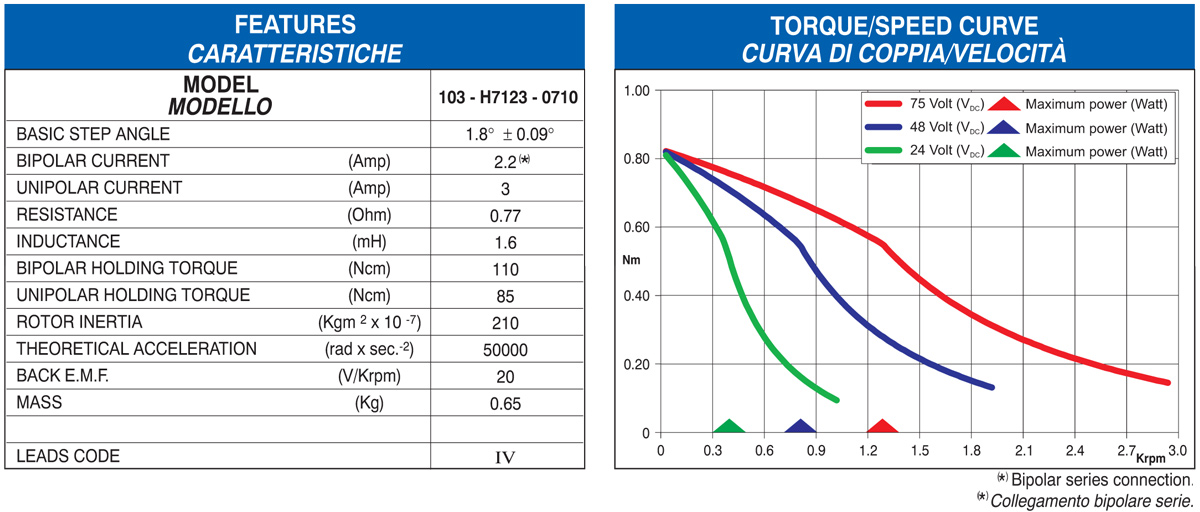

TECHNICAL SPECIFICATIONS
