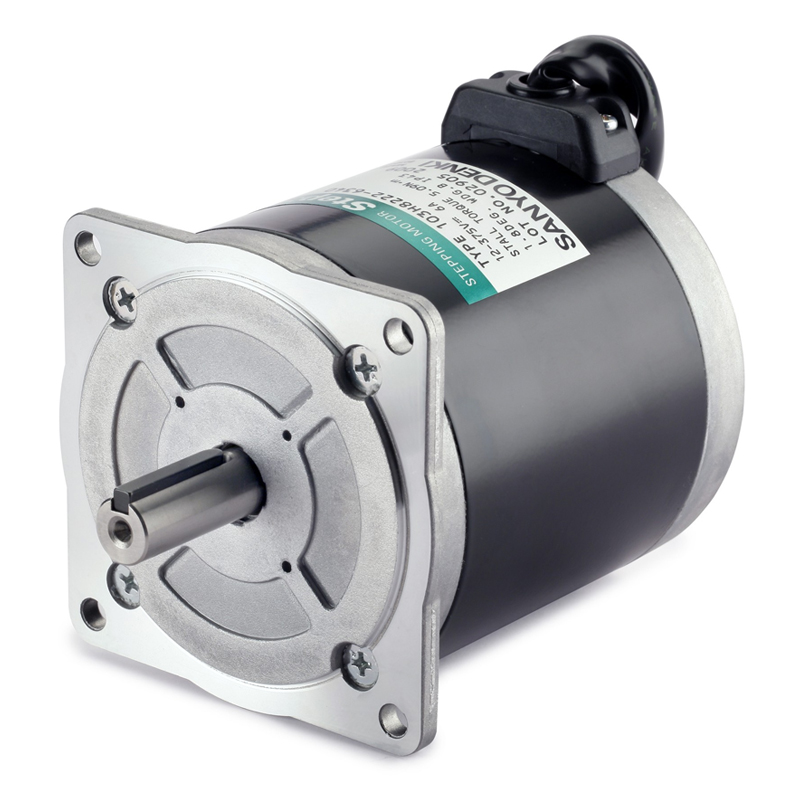

STEPPING MOTOR 103-H8222-6310
Flange size 85.8 mm. Nema 34

Introduction

103-H8222-6310 motor is characterized by flange size 85,8 mm. with holding torque up to 560 Ncm.
Suggested R.T.A. driver: A-NDC series, NDC series, HGD series, PLUS series.

SUGGESTED MOTOR/DRIVE COUPLING

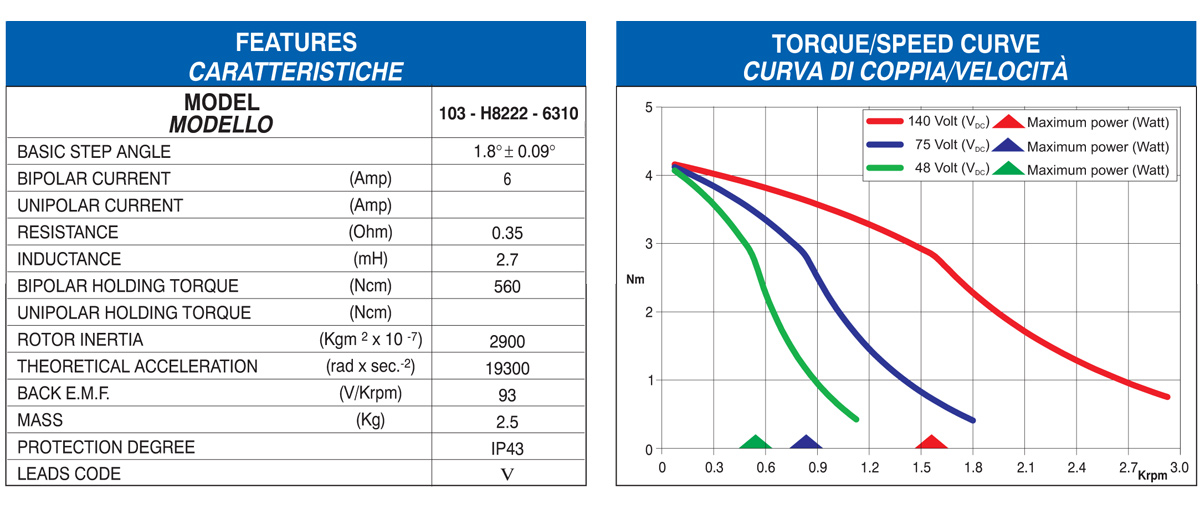

TECHNICAL SPECIFICATIONS
