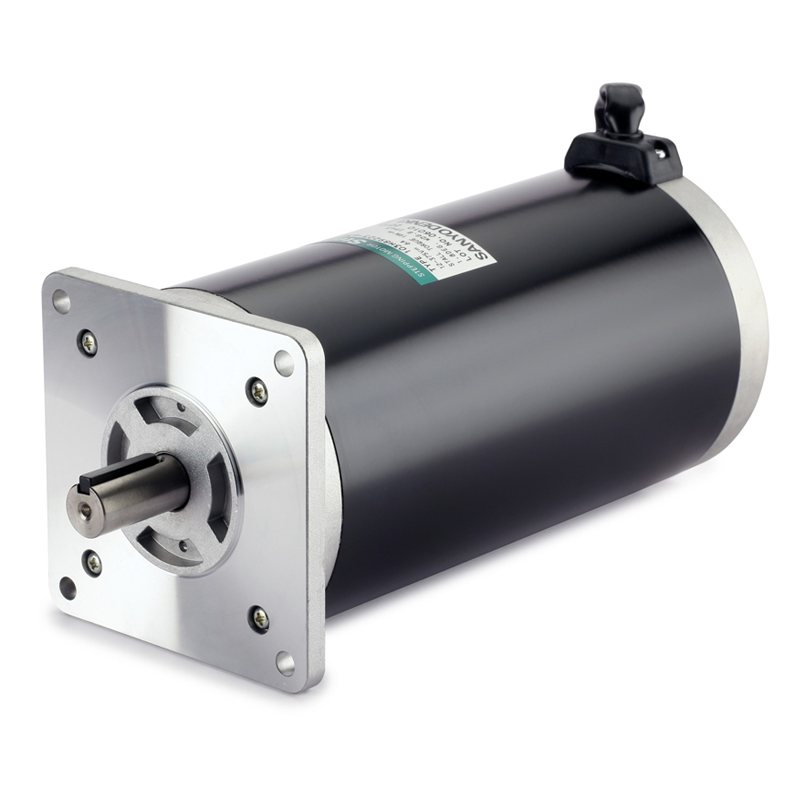

STEPPING MOTOR 103-H89223-6311
Flange size 106.4 mm. Nema 42

Introduction

103-H89223-6311 motor is characterized by flange size 106,4 mm. ( NEMA 42 ) with holding torque up to 2460 Ncm.
Suggested R.T.A. driver: X-MIND series, PLUS series.

SUGGESTED MOTOR/DRIVE COUPLING

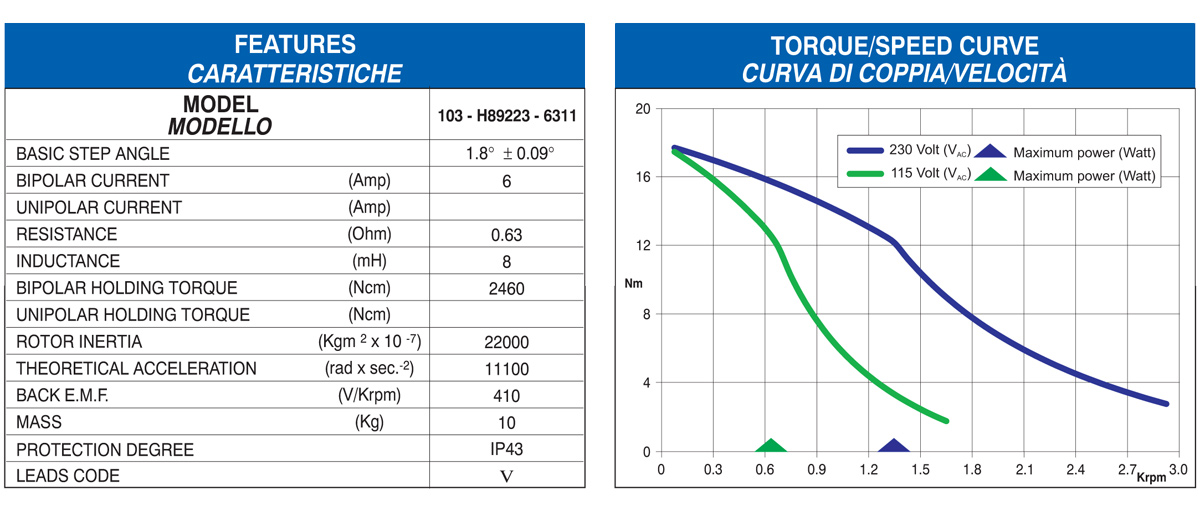

TECHNICAL SPECIFICATIONS
