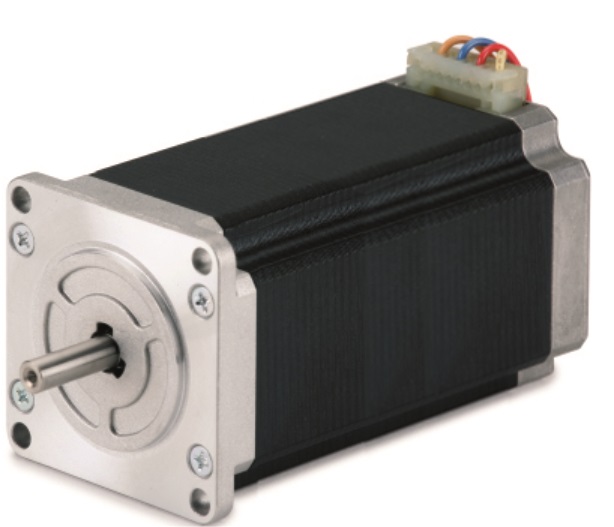

STEPPING MOTOR 103-H7128-5740
Flange size 56 mm. Nema 23

Introduction

103-H7128-5740 motor is characterized by flange size 56 mm. ( NEMA 23 ) with holding torque up to 200 Ncm.
Suggested R.T.A. driver: BSD series, CSD/CSD J/A-CSD Series, NDC/A-NDC Series, ADW Series, HGD Series

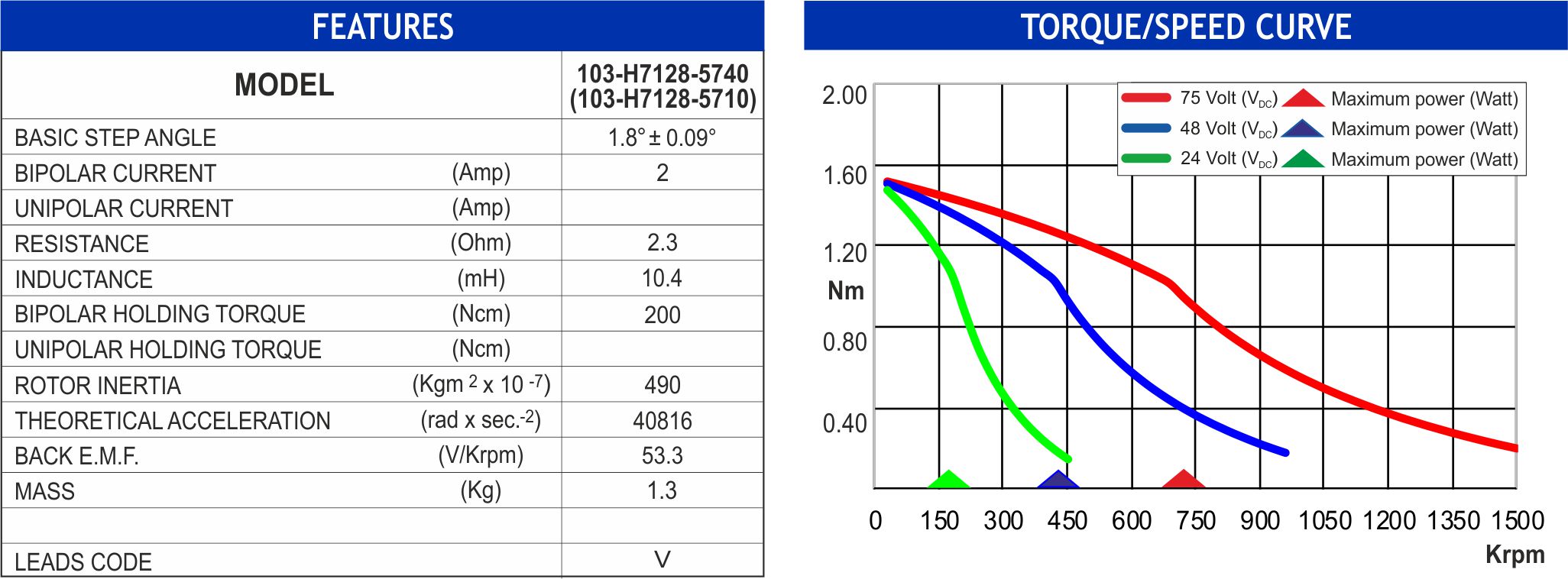

TECHNICAL SPECIFICATIONS
