STEPPING MOTOR RM 2R2M

Introduction

RM 2R2M motor is characterized by flange size 56 mm. with holding torque up to 165 Ncm.
Suggested R.T.A. driver: CSD, NDC, ADW, HGD, PLUS, FLEX-DRIVE.
Protection degree: IP54.
M12 connector on the motor for easy wiring.
High performance in terms of torque and power with compact size.
Coupling to drives with power supply directly from the main.
Class F insulation.
CE, UL and CSA marking.

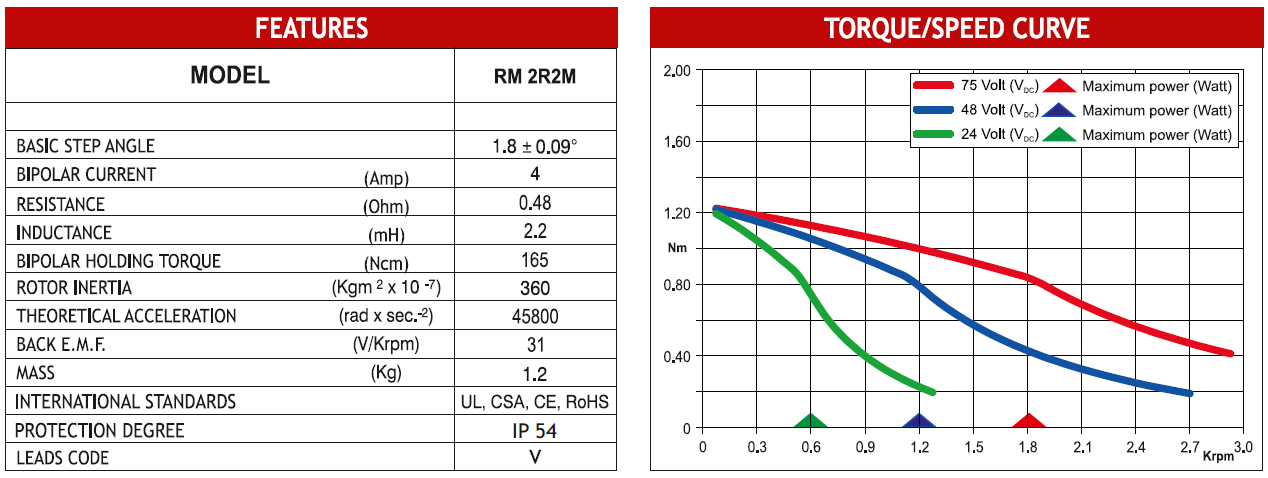

TECHNICAL SPECIFICATIONS
