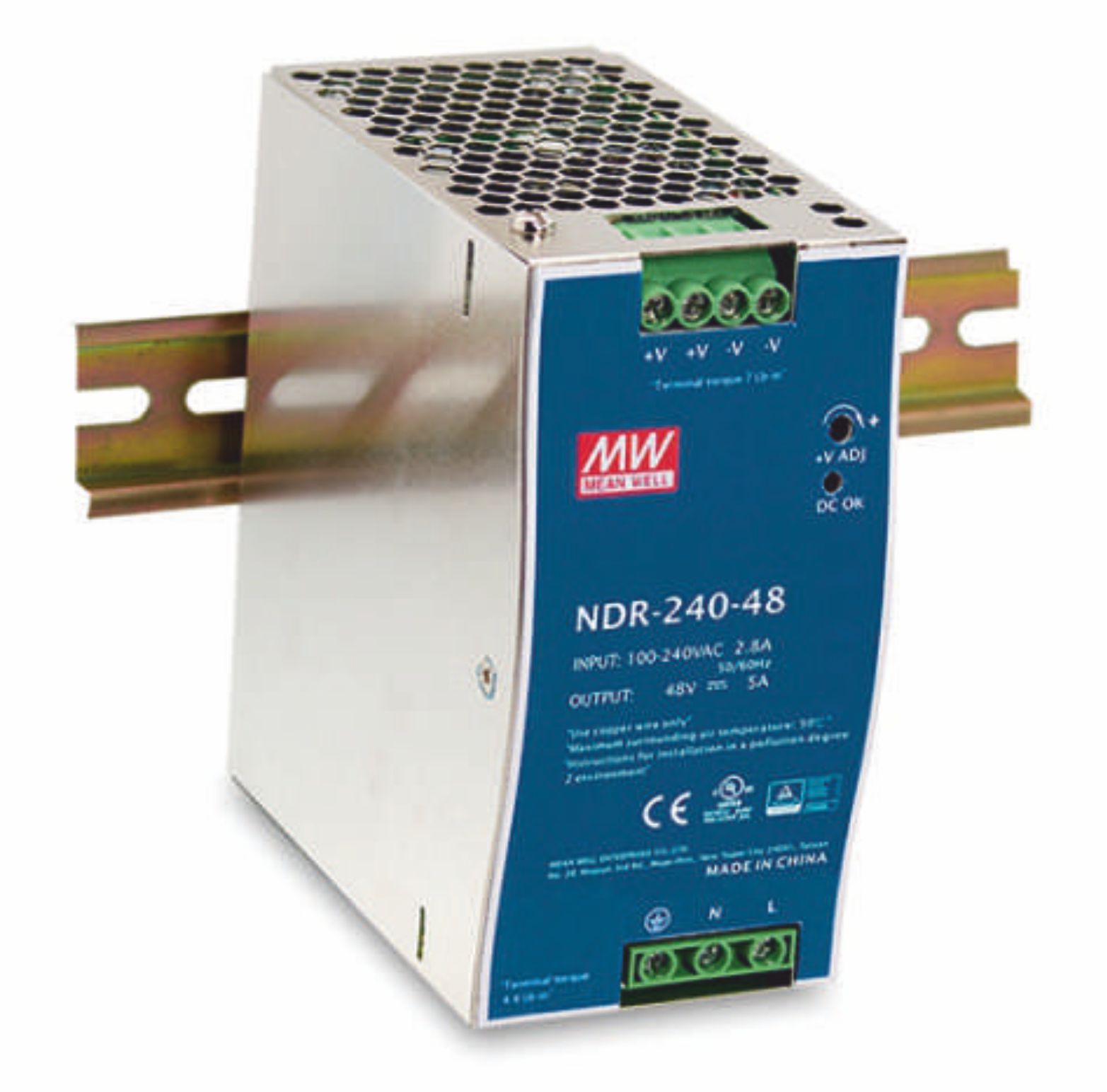

R-NDR-240-48 SWITCHING POWER SUPPLY
R-NDR-240-48

Introduction

The R-NDR series switching power supplies are available in two versions: 240W and 480W power. They can be installed on TS-35 / 7.5 or TS-35/15 rails and are perfectly compatible with RTA drives. Thanks to DIN rail mounting, these power supplies are quick to install and take up little space.

- 2 standard sizes: 240W, 480W
- AC input voltage range:    90-264 VAC 
- Output:   5A (24 VDC - 48 VDC)
- UL, EAC,TUV, CB e CE certifications
- Integrated PFC function (Power Factor Correctio

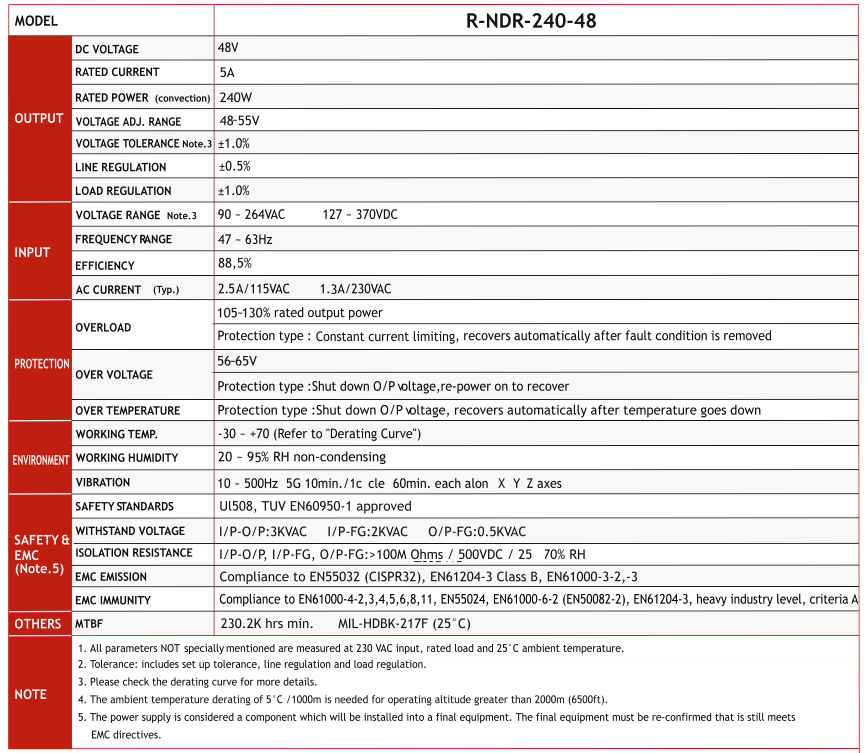

TECHNICAL SPECIFICATIONS
