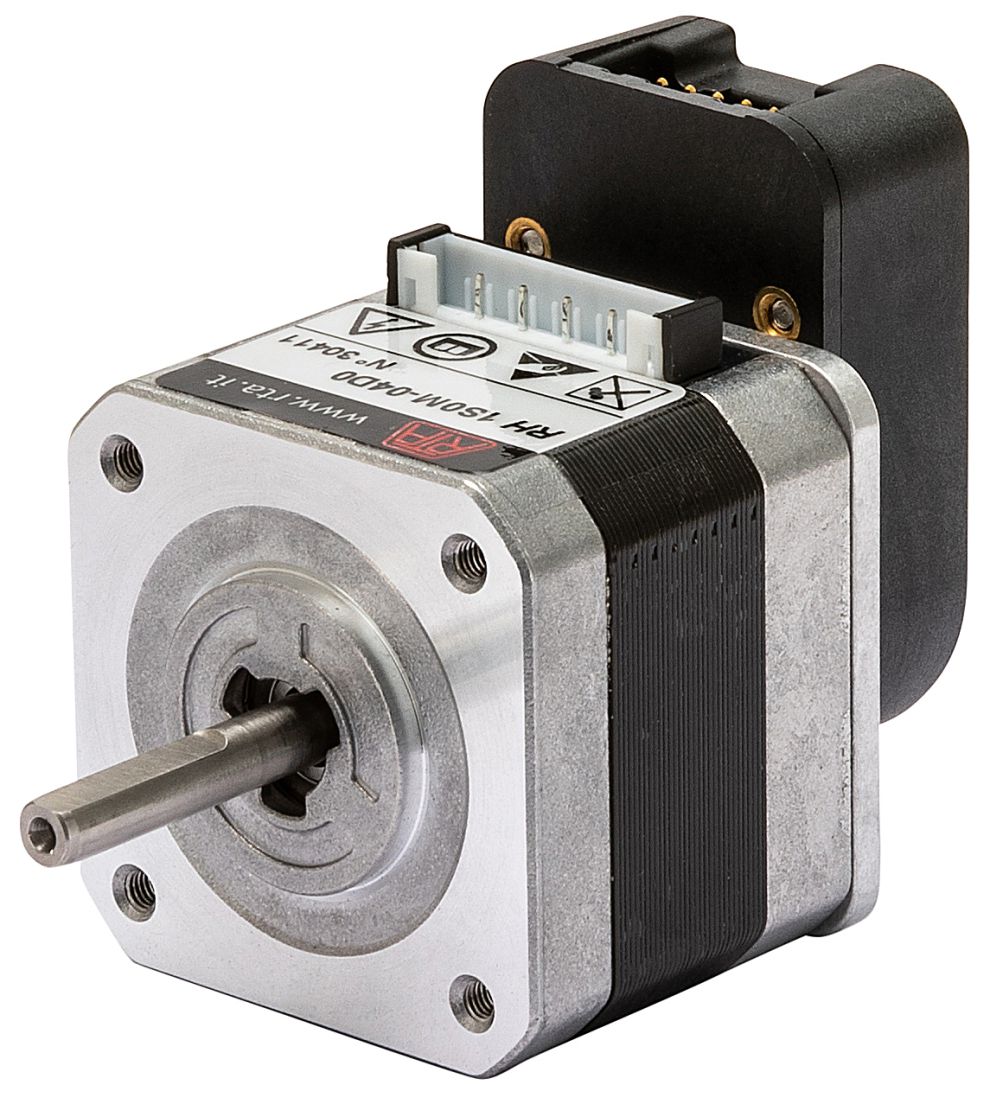

STEPPING MOTOR WITH ENCODER RH 1S0M-0XX0

Introduction

RH 1S0M-0XX0 encoder motor is available with three different encoder versions, with 400 cpr and 4000 cpr resolution, with or without index.
Equipped with JST connector, it offers high torque with low vibrations and heating.
Characterized by flange size 42 mm. ( NEMA 17 ) and holding torque up to 29 Ncm, it can be coupled with the following R.T.A. drives: BSD series, CSD/CSDJ series/ A-CSD series, NDC/ A-NDC series.

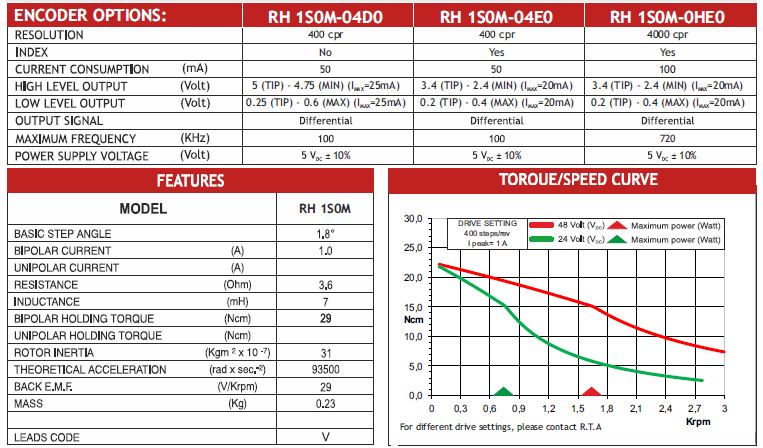

TECHNICAL SPECIFICATIONS
