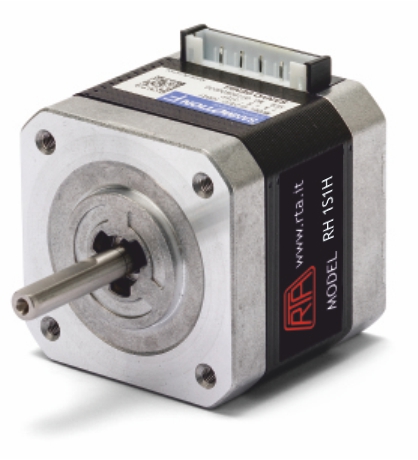

STEPPING MOTOR RH 1S1H

Introduction

RH 1S1H motor, 2 A version, is characterized by flange size 42 mm. ( NEMA 17 ) with holding torque up to 43 Ncm.
Equipped with JST connector, it offers high torque with low vibrations and heating.
Suggested R.T.A. driver: BSD series, CSD/CSDJ series/ A-CSD series, FLEX-DRIVE series.

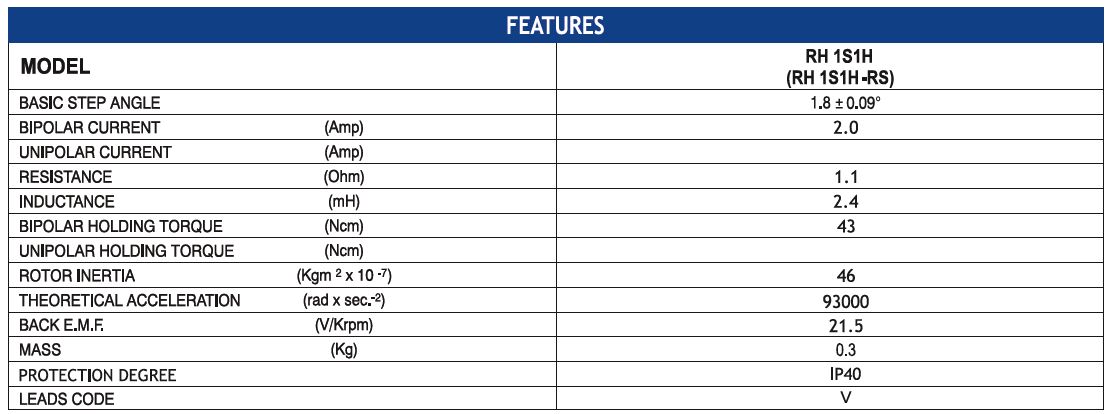

TECHNICAL SPECIFICATIONS
