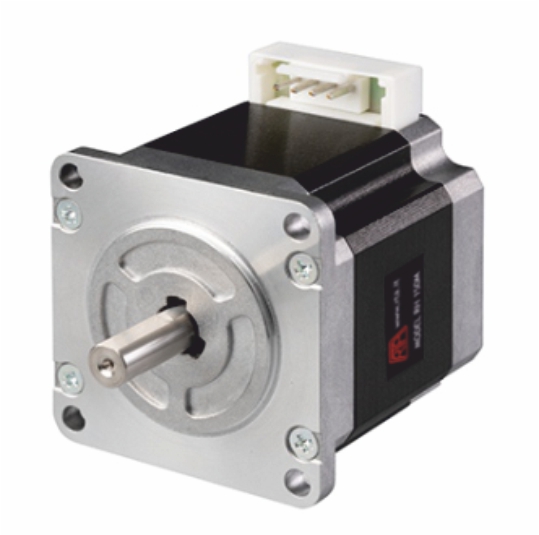

STEPPING MOTOR RH 2S1M

Introduction

RH 2S1M motor is characterized by flange size 56 mm. ( NEMA 23 ) with holding torque up to 140 Ncm.
Equipped with JST connector, it offers high torque (30 % higher than the previous H series) with low vibrations and heating.
Suggested R.T.A. driver: BSD series, CSD/CSDJ series/ A-CSD series, FLEX-DRIVE series, NDC/ A-NDC series.

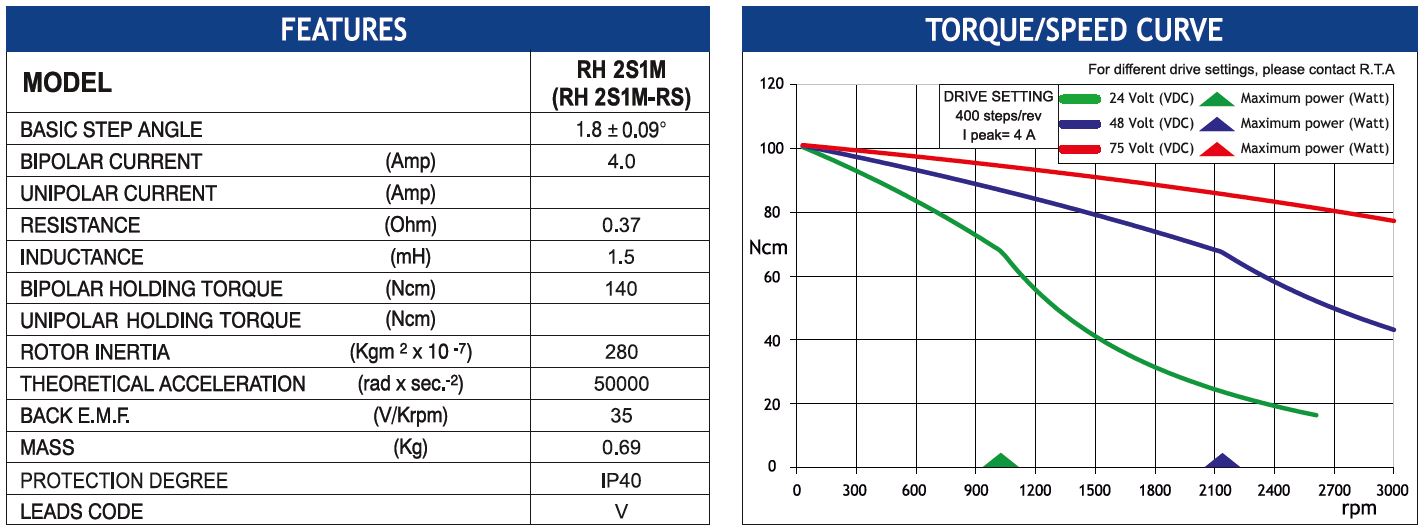

TECHNICAL SPECIFICATIONS
