FRONT BRAKE FB-M12-17-02-00000

Introduction

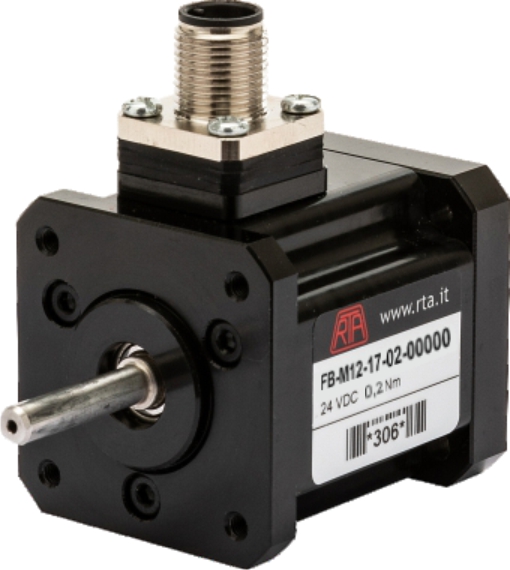

The FB-M12-17-02-00000 is an electromagnetic holding brake, that perfectly couples with NEMA 17 flange R.T.A. stepping motors, with or without encoder, and combo units.

Power supply: 24Vdc

M12 connector

Holding Torque: 0.2 Nm

Cables: standard or 90°, 1m or 3 m long

Easy mounting and cabling

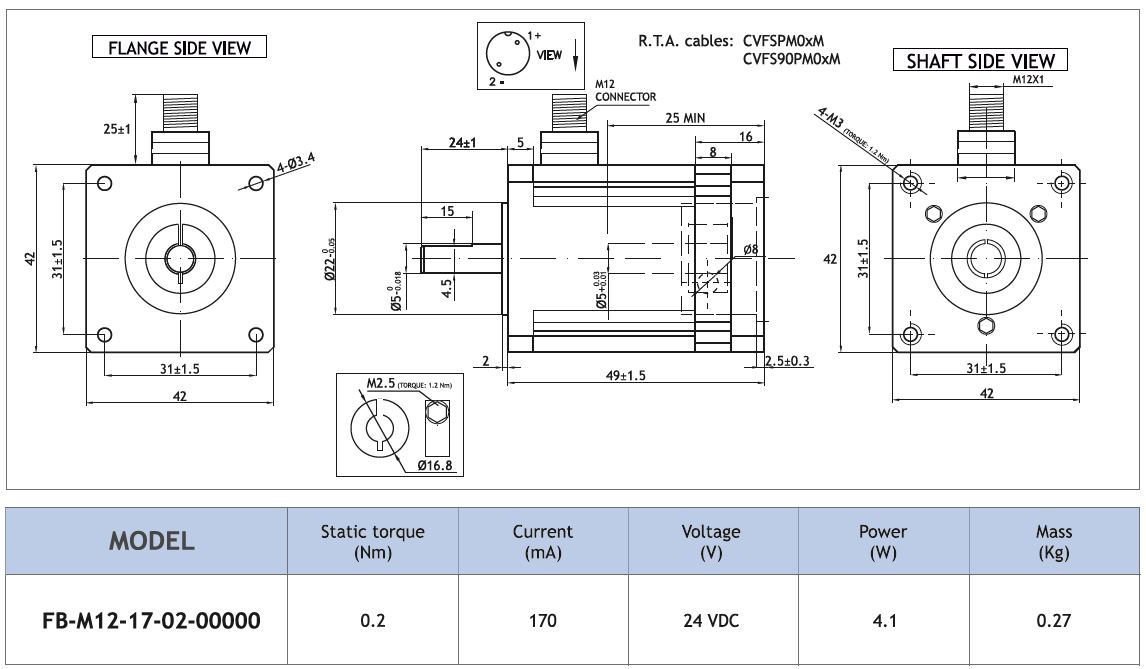

TECHNICAL SPECIFICATIONS
